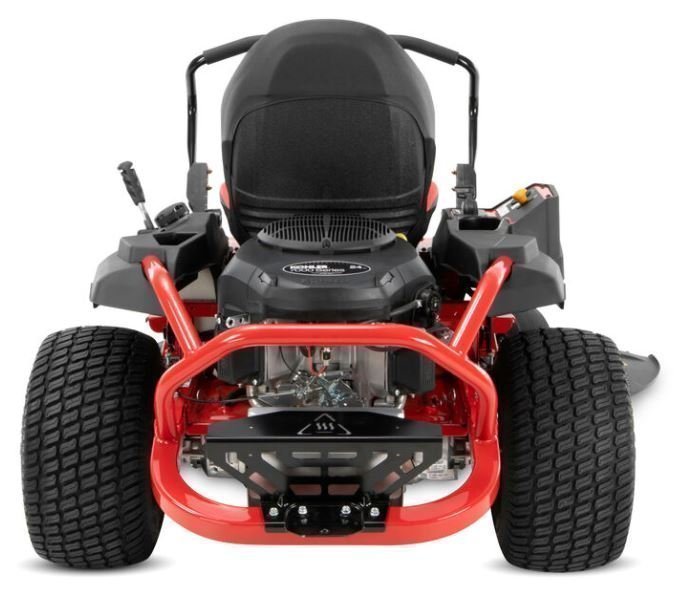

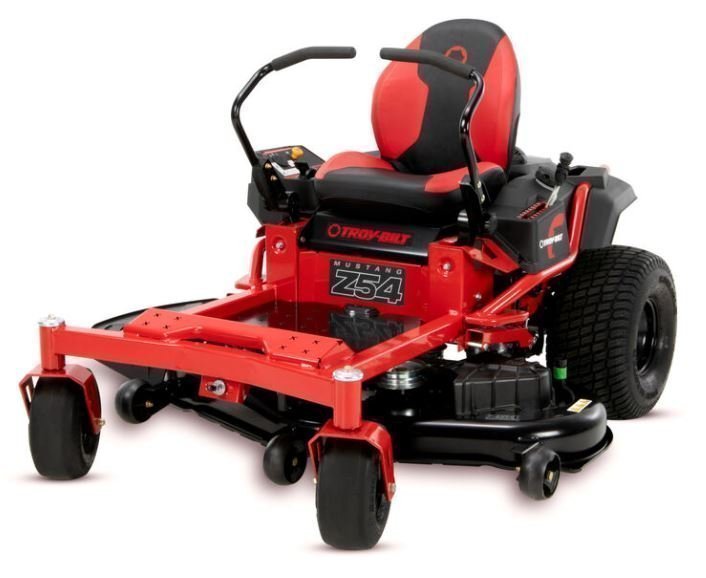

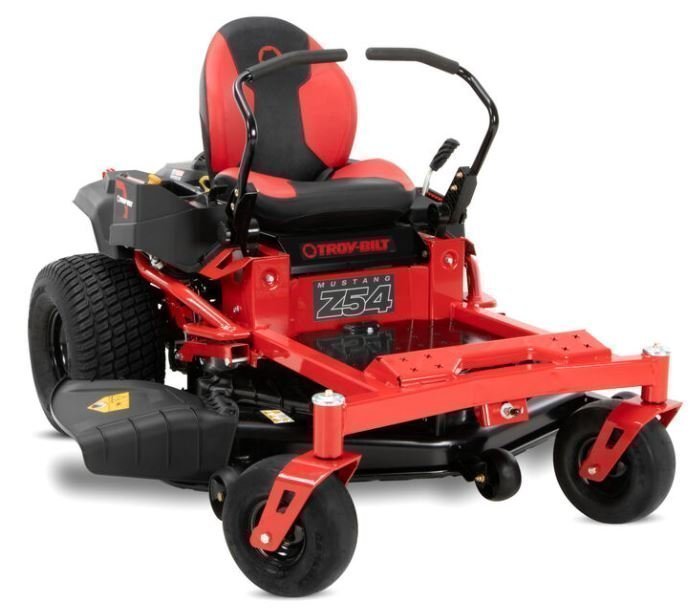

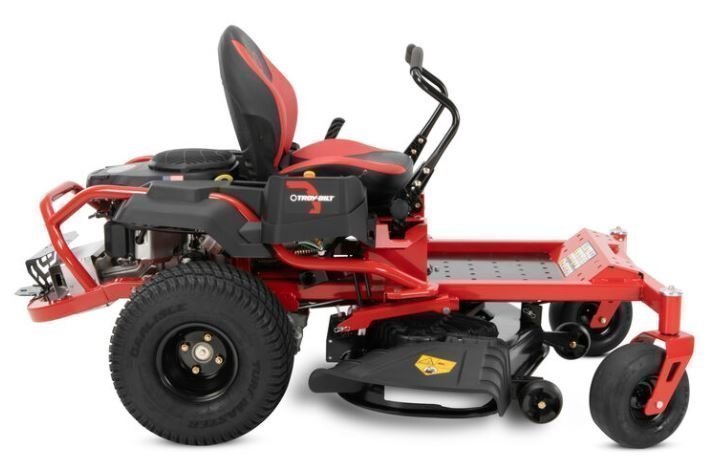

Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66
Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66
Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66
Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66
4.5/5 by +5.000 customers

Troy Bilt Mustang Z54 24hp 725cc Kohler Engine 54″ Z-Turn Mower #17ARFACWA66

$809.10

In stock, ready for shipping
30-day return guarantee
Free shipping
Quantity:
Shipped by Sat. 17 Oct
Free Shipping
Mastercard Visa Shop Pay Apple Pay Google Pay
UPDATE: Due to high demand for our exclusive Winter Sale, our warehouse is almost sold out! Hurry – only while supplies last!
Mow large areas faster with the zero-turn capability of the Mustang Z54. The heavy-duty, fully welded frame provides dependable performance in rugged conditions and is backed by a limited lifetime warranty. You’ll get more comfort and support with the high back seat and padded lap bars.
  • Powerful 24HP twin-cylinder Kohler 7000 Series engine delivers quieter, more balanced performance with less vibration
  • Heavy-duty, full length, fully welded, 2″ tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty
  • Large 54″ steel cutting deck reduces mowing time in large areas and the anti-scalp deck wheels prevent turf damage and deliver a clean, even cut
  • Dual hydrostatic transmission delivers true zero turn performance for quicker mow times and improved maneuverability
  • Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls
Engine
  • Engine BrandKohler®
  • Engine Model7000 Series
  • Engine Model NumberKT735
  • Engine Displacement725cc
  • Engine Output24HP
  • Starter TypeElectric
  • Fuel Tank Capacity3.5 gal. US (13.25 L)
  • CylindersTwin
  • Engine StartIgnition Key
  • Engine Oil Capacity2.0 qt. US (1.89 L)
  • LubricationFully pressurized
  • Charging System12 amp regulated
  • Fuel GaugeNo
  • GovernorMechanical
  • ChokeChoke-a-matic
  • Air FilterDual element
  • Oil FilterYes
  • Fuel DeliveryCarburetor
Battery
  • Battery230 CCA
  • Battery TypeStandard Lead-Acid
  • Battery Voltage12V
Drive System
  • TransmissionHydro-Gear EZT 2200
  • Forward Speed7 MPH
  • Reverse Speed2.5 MPH
  • Drive SystemHydrostatic
Cutting Deck
  • Deck Cutting Width54 in
  • Deck WashYes
  • Deck Material12-gauge steel
  • Deck Engagement (PTO)Electric
  • Deck ConstructionStamped
  • Blade(s)Three
  • Deck LiftFoot pedal
  • Cutting Height Range1″ – 4.5″
  • Anti-ScalpingThree gauge wheels
  • Deck Positions8
Warranty
  • Warranty3-year limited residential
  • Frame WarrantyLifetime Limited
  • Deck Shell Warranty3-year limited
  • Commercial WarrantyNo
Chassis
  • Frame2″ x 2″ tubular steel
  • Turning Radius0°
  • ROPSNo
  • Rear Tow HitchYes
  • Corrosion ProtectionYes
Controls
  • Cruise ControlNo
  • Steering ControlLap Bars
Comfort
  • Seat Type18″ high back
  • ArmrestsNo
  • Seat AdjustmentKnob
Wheels
  • Rear Tires20″x 10″- 8″
  • Front Tires11″x 6″-5″
Additional Specifications
  • Hour MeterNo
  • Headlight(s)No
  • Cup HolderYes
  • Operator Presence SystemYes
  • Parking BrakeLap Bar Integrated
  • Model Number17ARFACWA66
