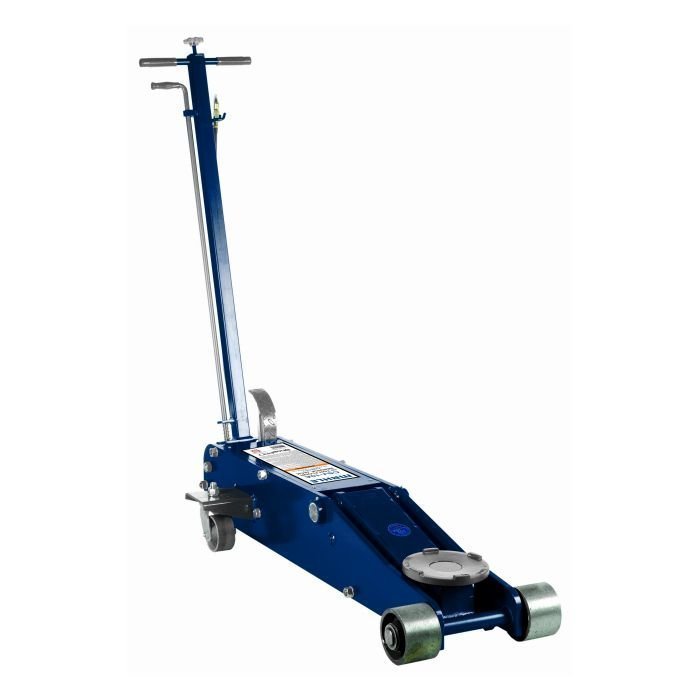

MAHLE Shop PRO CSJ-10A Air Assist Service Jack

The MAHLE Shop PRO Service Jacks are built up to a 20,000 lbs. lifting capacity and provide the reliability and quality needed to keep your operation going. Made in the USA, these vehicle service jacks offer a low starting height that provides shops with the flexibility to accommodate a variety of vehicles. The unique large 5″ front wheels and long-life heavy-duty 4″ rear swivel caster design makes maneuvering any component and easy task. The heavy-duty steel frame design stands up to the most vigorous shop use.

Features

• 20,000 lbs. Capacity
• Low Start Height
• High Lift Height
• Unique Large Front Wheels
• Heavy-Duty Rear Swivel Caster Design
• Heavy-Duty Steel Frame

Specifications

• Maximum Capacity: 20,000 lbs. (9,072 kg)
• Minimum Start Height: 7 in (18 cm)
• Maximum Lift Height: 27 in (69 cm)
• Power: Air / Hydraulic / Manual
• Required Air Pressure: 90 to 175 psi (6.2 to 12.1 bar)
• Chassis Dimensions (H x L): 10 in x 53.5 (25 cm x 136 cm)
• Overall Reach: 93 in (236 cm)
• Saddle Diameter: 8 in (20 cm)
• Front Width Caster to Caster: 17.1 in (43 cm)
• Rear Width Bracket to Bracket: 20.1 in (51 cm)
• Front Caster Diameter: 5 in (13 cm)
• Rear Swivel Caster Diameter: 4 in (10 cm)
• Handle Length: 47 in (119 cm)
• Dimensions: (W x L) 21.9 in x 101.8 in (56 cm x 259 cm)
• Shipping Weight: 410 lbs. (186 kg)
