Big Tex Pro Series Tandem Axle Vanguard Trailer | 10TV

Overview

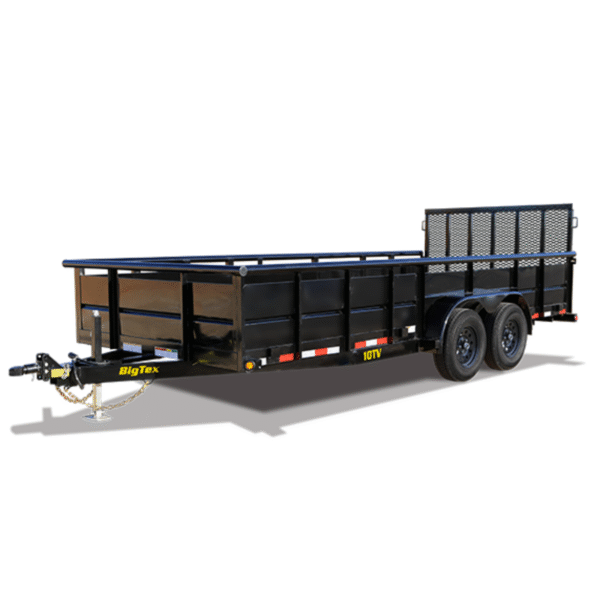

The 10TV is a heavy‑duty tandem‑axle utility/landscape trailer designed for professionals who need rugged hauling performance. Built with an 83″ wide deck and high‑side steel panels, it’s ideal for landscapers, contractors, and service fleets transporting equipment, materials or supplies.

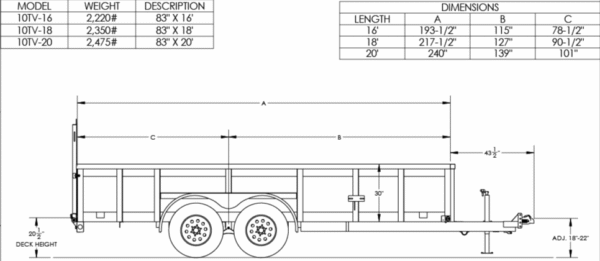

Key Specifications

• Deck width: 83″

• GVWR: 9,990 lbs

• Available lengths: typically 16′, 18′, 20′

• Empty weight: ~2,350 lbs (for 16′ model)

• Payload capacity: ~7,640 lbs (for 16′ model)

• Sides: 29‑3/8″ tall with V‑crimped steel panels

• Axles: Tandem 5,200 lb cambered axles with quick‑lube hubs

• Coupler: Adjustable 2‑5/16″ forged style

Features & Benefits

• Tall steel sides keep cargo contained and secure during transport.

• Wide deck allows for larger equipment or multiple loads.

• Adjustable coupler makes it more flexible across truck fleets with varying hitch heights.

• Heavy‑duty frame and components designed for professional use and frequent hauling.

• Rear ramp gate (standard 4′ tall) for easier loading/unloading of equipment.

Ideal Use Cases

• Landscaping businesses hauling mowers, tractors, tools and supplies.

• Service providers transporting bulky equipment or bulky material loads between sites.

• Fleets with multiple vehicles needing one trailer that can adjust to different tow rigs.

• Operations requiring a durable utility trailer with side containment for frequent use.
